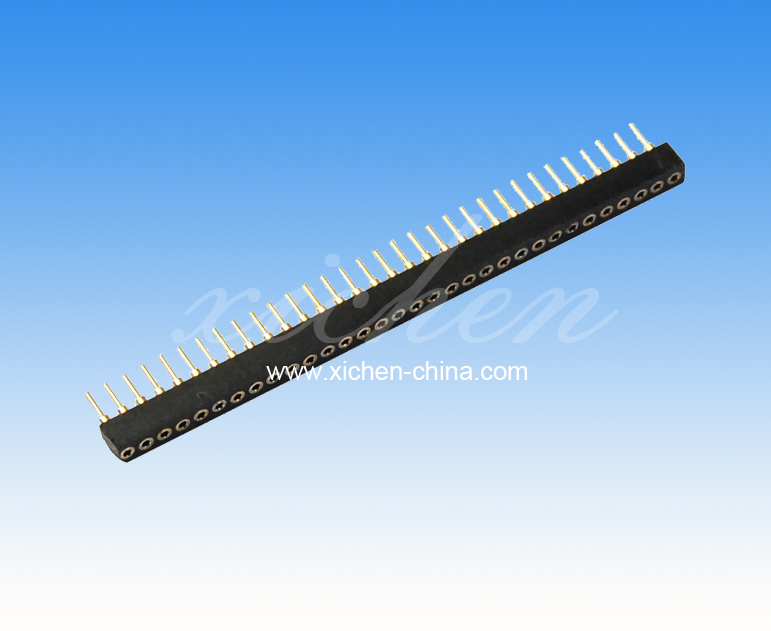

2.0mm間距圓形排母 單排180度 塑高H=3.0mm

SPECIFICATIONS

Current Rating:              3 Amps

Withstanding Voltage: AC  500V

Insulation Resistance: 1000M ohms Min

Contact Resistance:     20milli  ohms Max

Operation Temperature: -40°to+105°

Insrlator Material:         Polyester(UL94V-0)

Standard:                       6T

Contact Material:          Brass

Contact Plating:            Au or Sn over 40u" Ni

Mox.Processing Temp:  230°C for 30-60 seconds

                                   (260° C for 5-10 seconds)
